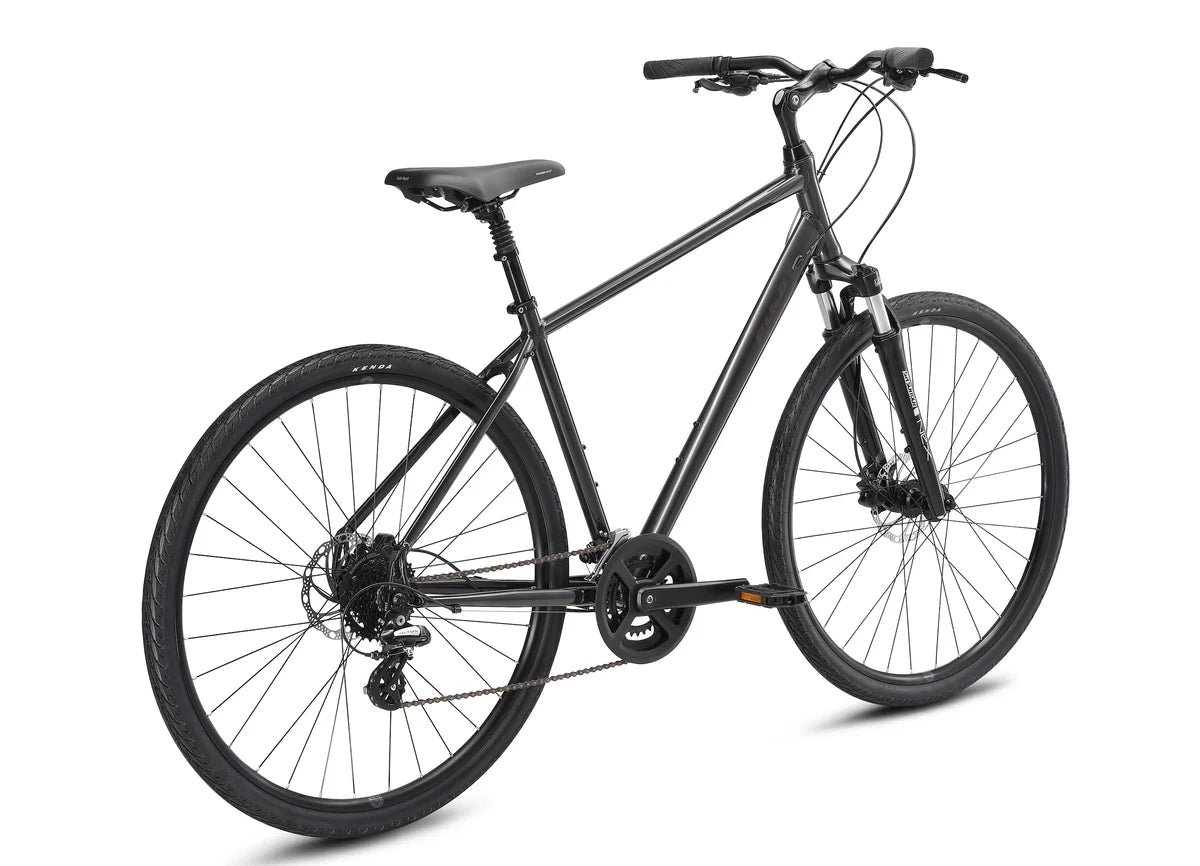

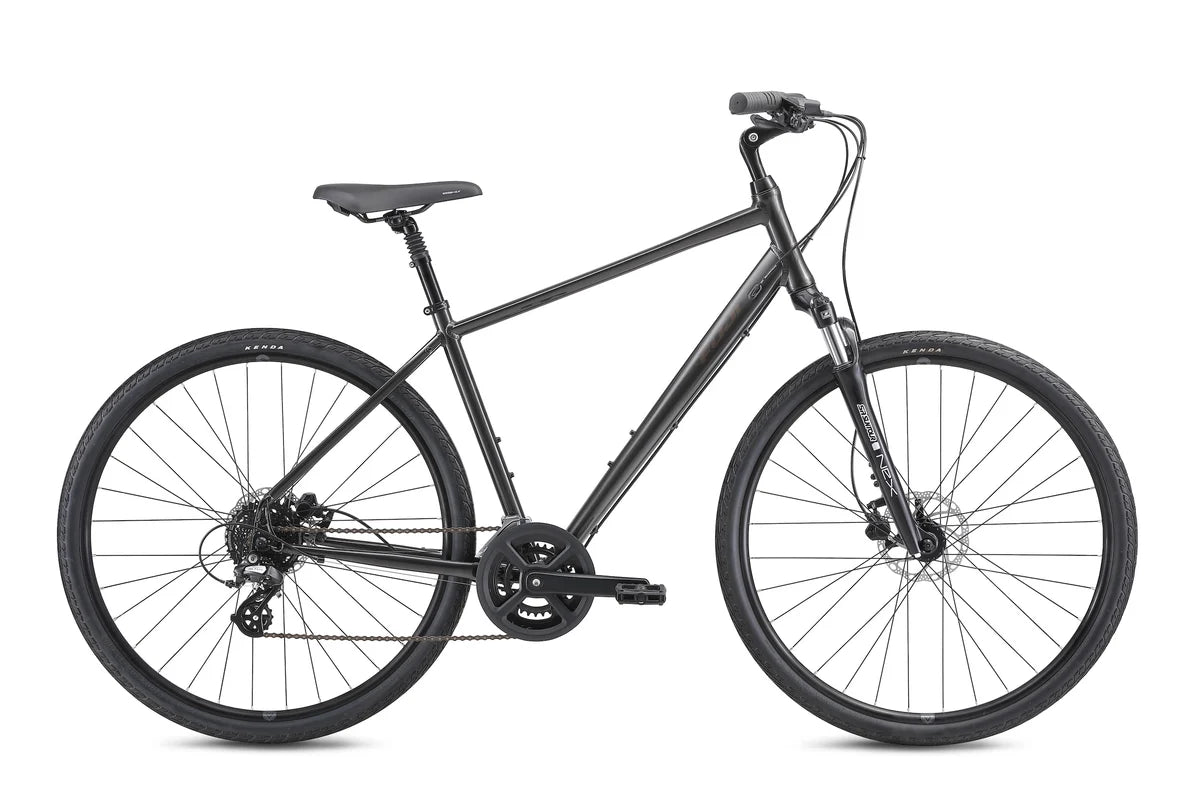

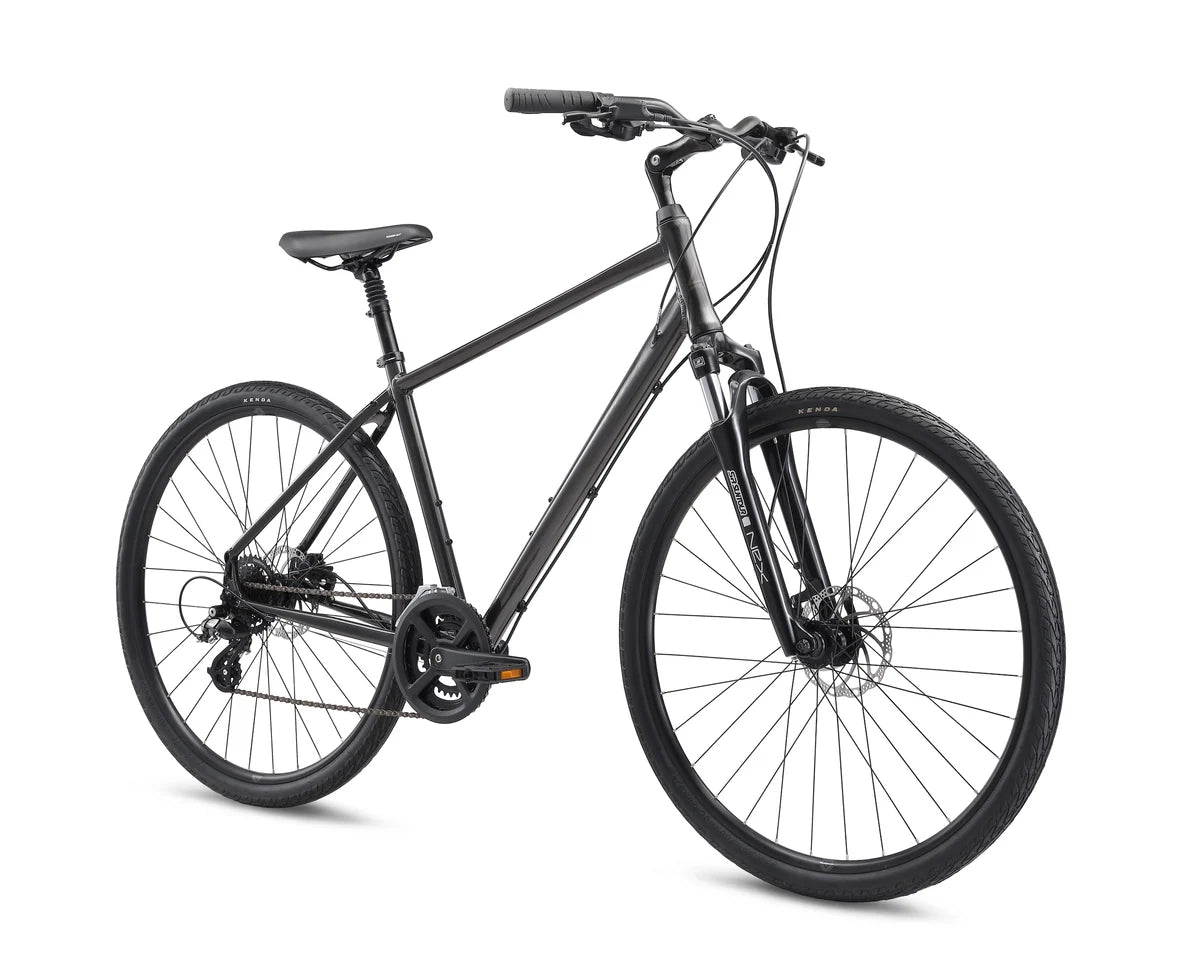

Comfort and versatility are paramount on the Crosstown. Excellent for beginner recreational and fitness riders that want to get in decent milage anywhere from pavement to rail trails.
Sizes
S (15"), M (17"), L (19"), XL (21")
Frame
Fuji A2-SL custom-butted alloy
Fork
SR NEX suspension, 63mm travel
Crankset
Prowheel, 46/30T
Bottom Bracket
Sealed cartridge bearing
Front Derailleur
Shimano Tourney
Rear Derailleur
Shimano Altus
Shifters
Shimano Altus, 2 x 8-speed
Cassette
Shimano Altus, 11-34T
Wheelset
Weinmann double wall rims, 32h, 14g stainless spokes
Brakeset
Tektro HD-275, hydraulic disc, 160mm rotors
Brake Levers
Tektro HD-275, hydraulic disc
Handlebar
Alloy, 25mm rise, 25 degree backsweep
Grips
Velo comfort, lock on
Saddle
Selle Royal LookIn
Seatpost
Alloy micro-adjust suspension , 27.2mm
Weight
14.93kg / 32.93lbs
| Size |
S |
M |
L |
XL |
|
Bike Size |
15" |
17" |
19" |
21" |
| A |
Seat Tube, Center To Top |
381 |
445 |
495 |
560 |
| C |
Top Tube, Effective |
596 |
611 |
625 |
645 |
| D |
Head Tube Length |
150 |
160 |
170 |
185 |
| E |
Seat Tube Angle |
70° |
70° |
70° |
70° |
| G |
Head Tube Angle |
69° |
69° |
69° |
69° |
| H |
Chainstay Length |
465 |
465 |
465 |
450 |
| I |
Wheelbase |
1086 |
1101 |
1116 |
1136 |
| J |
Bottom Bracket Drop |
68 |
68 |
68 |
68 |
| K |
Fork Offset |
40 |
40 |
40 |
40 |
| M |
Stack |
638 |
647 |
651 |
671 |
| N |
Reach |
365 |
376 |
381 |
402 |
| O |
Standover |
771 |
805 |
836 |
864 |
|
Handlebar Width |
620 |
620 |
640 |
640 |
|
Crank |
170 |
170 |
175 |
175 |
|
Wheel Size |
700C |
700C |
700C |
700C |
|
Seat Post Diameter |
27.2 |
27.2 |
27.2 |
27.2 |
