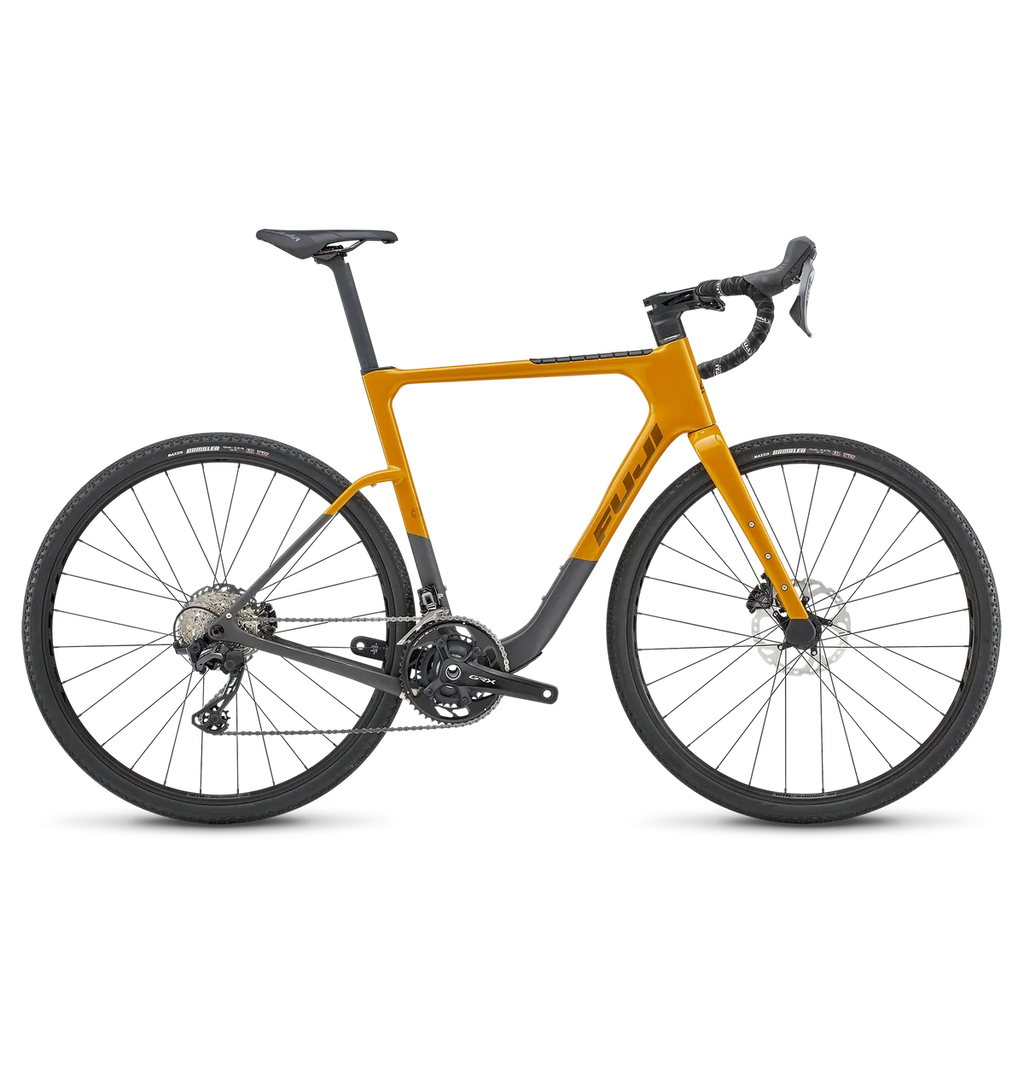

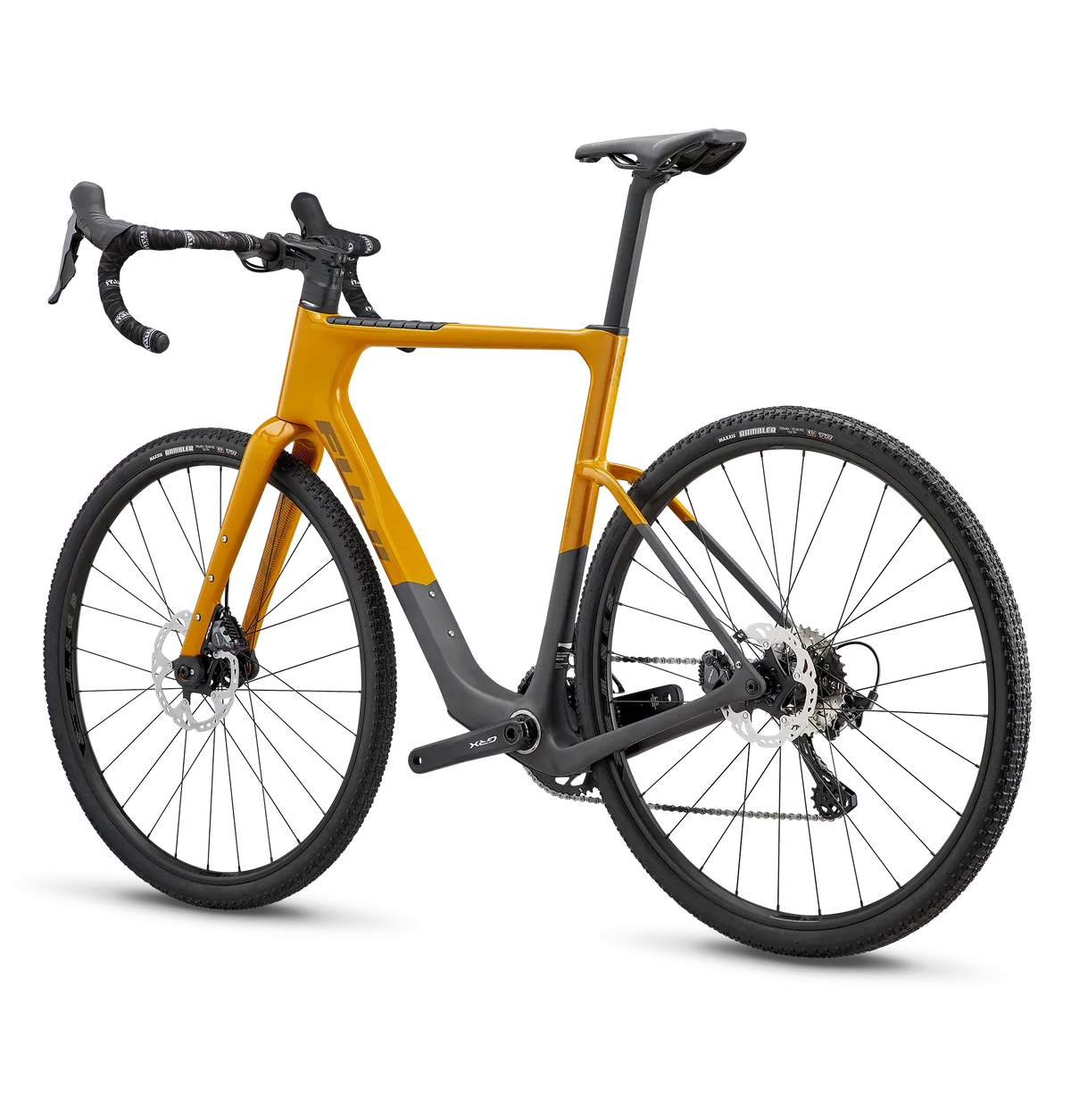

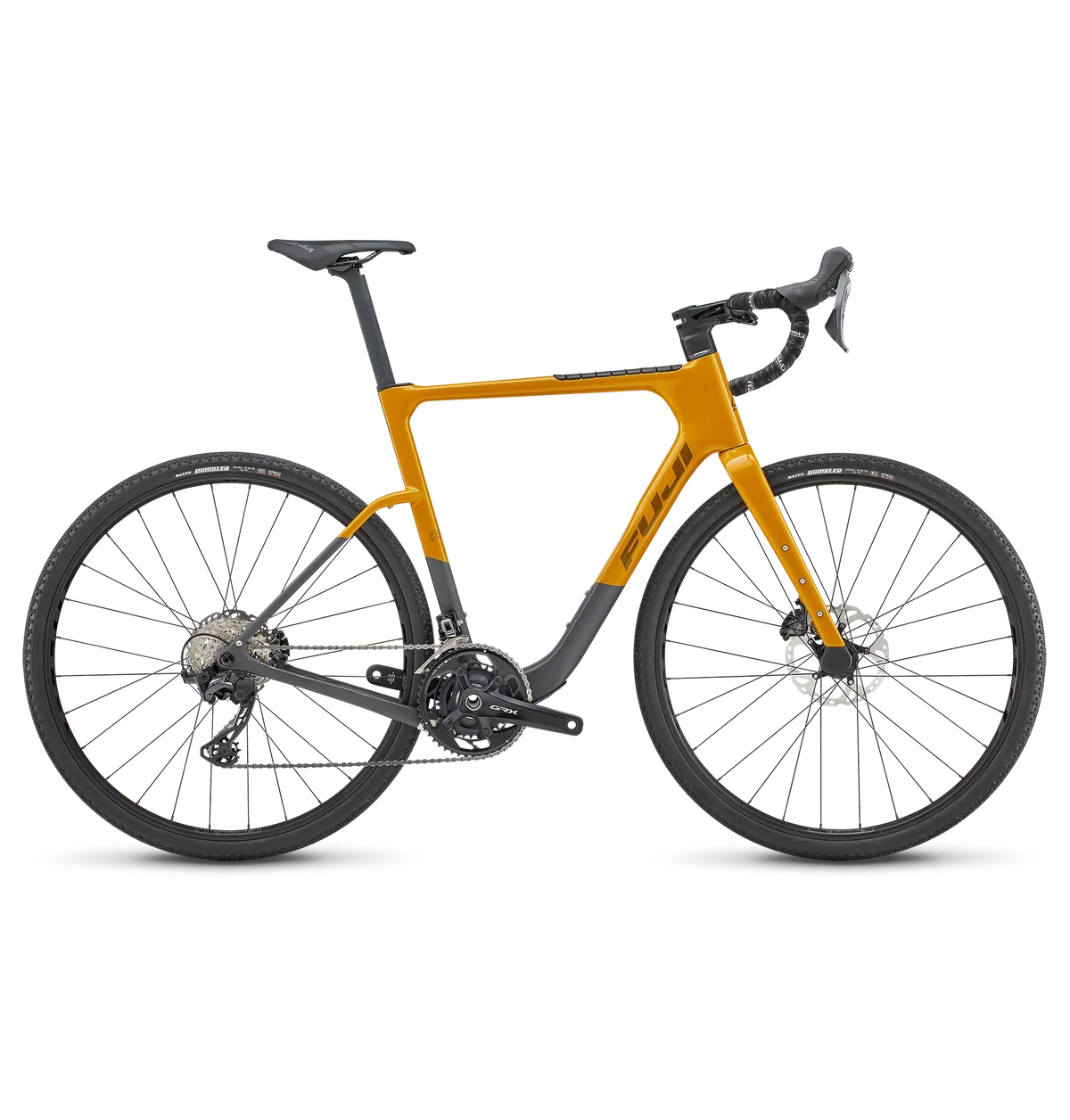

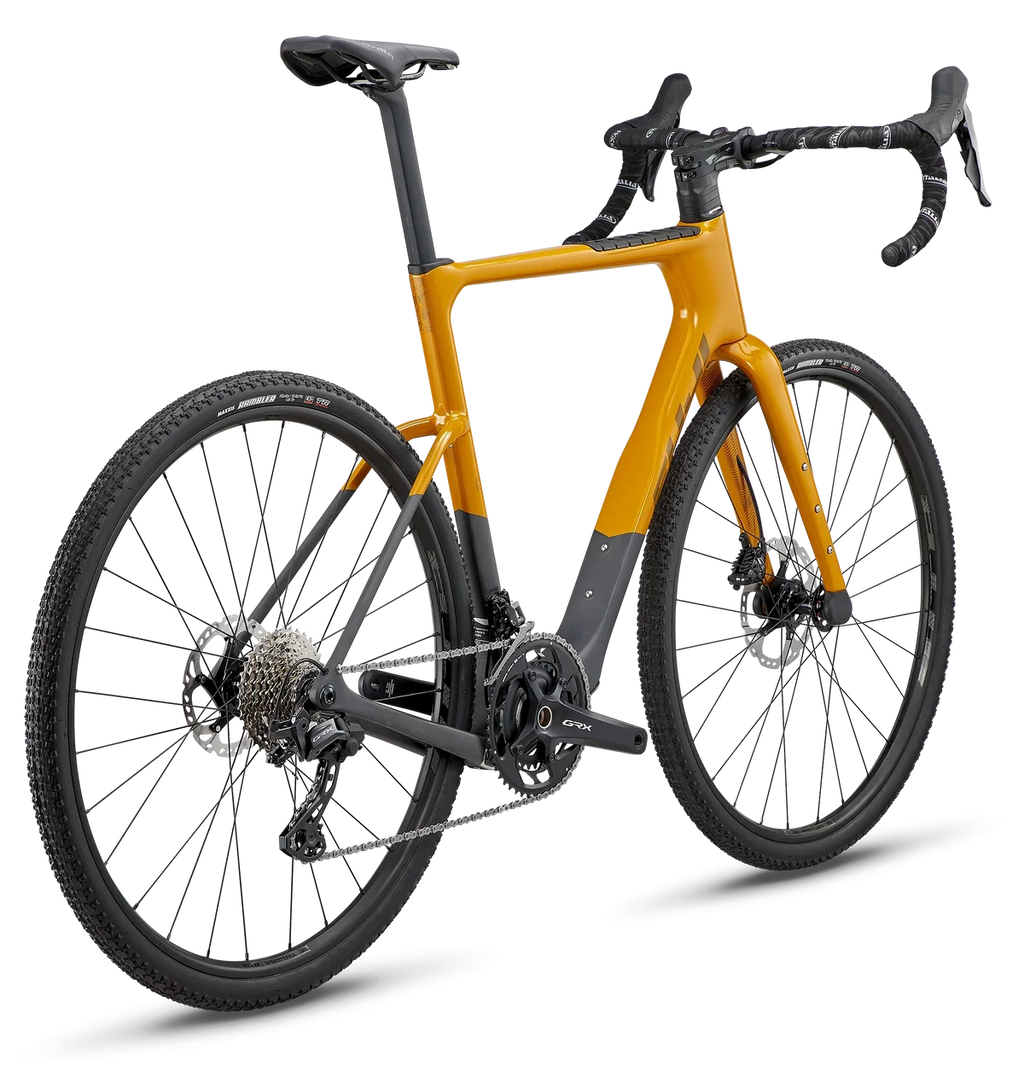

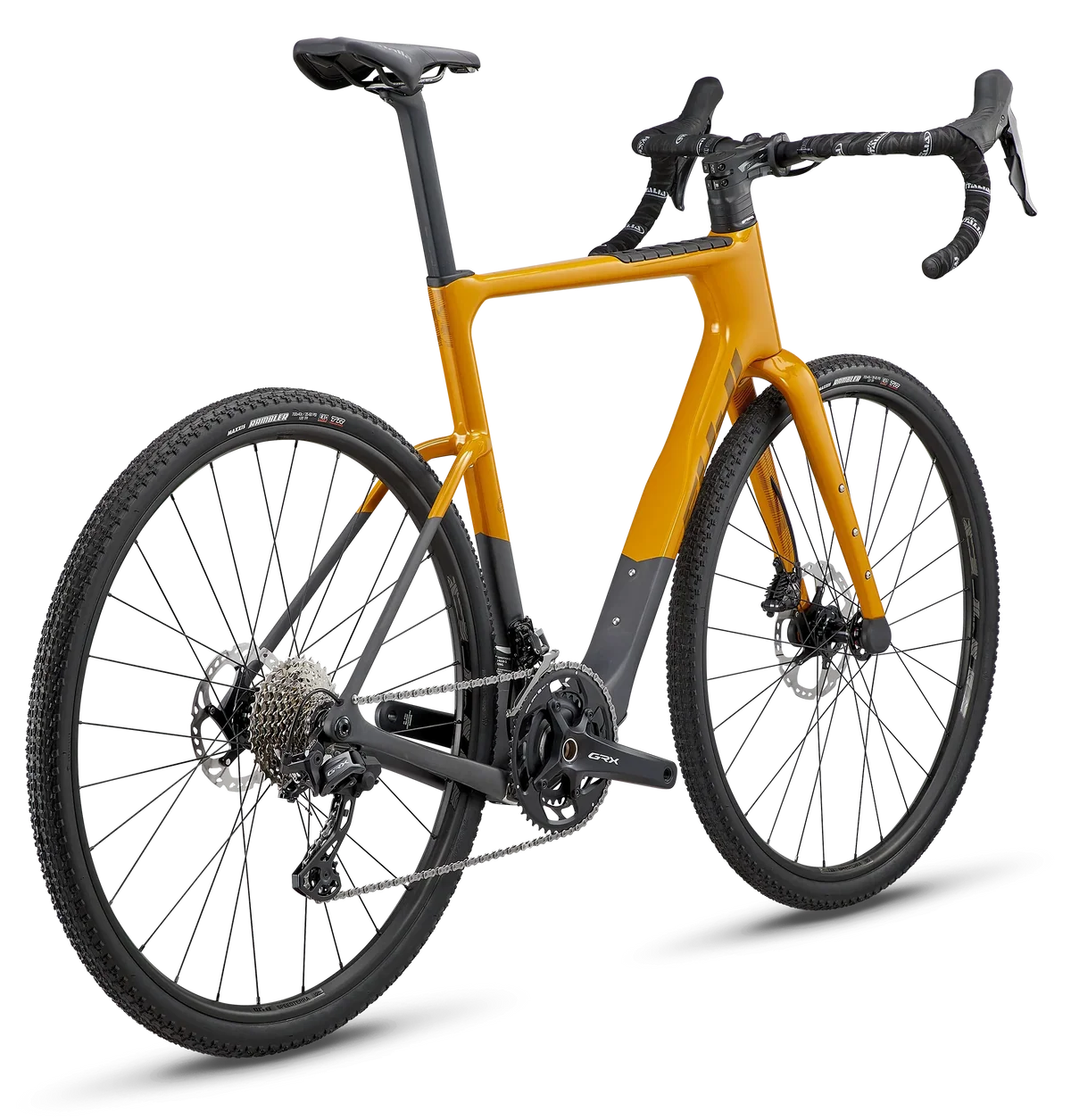

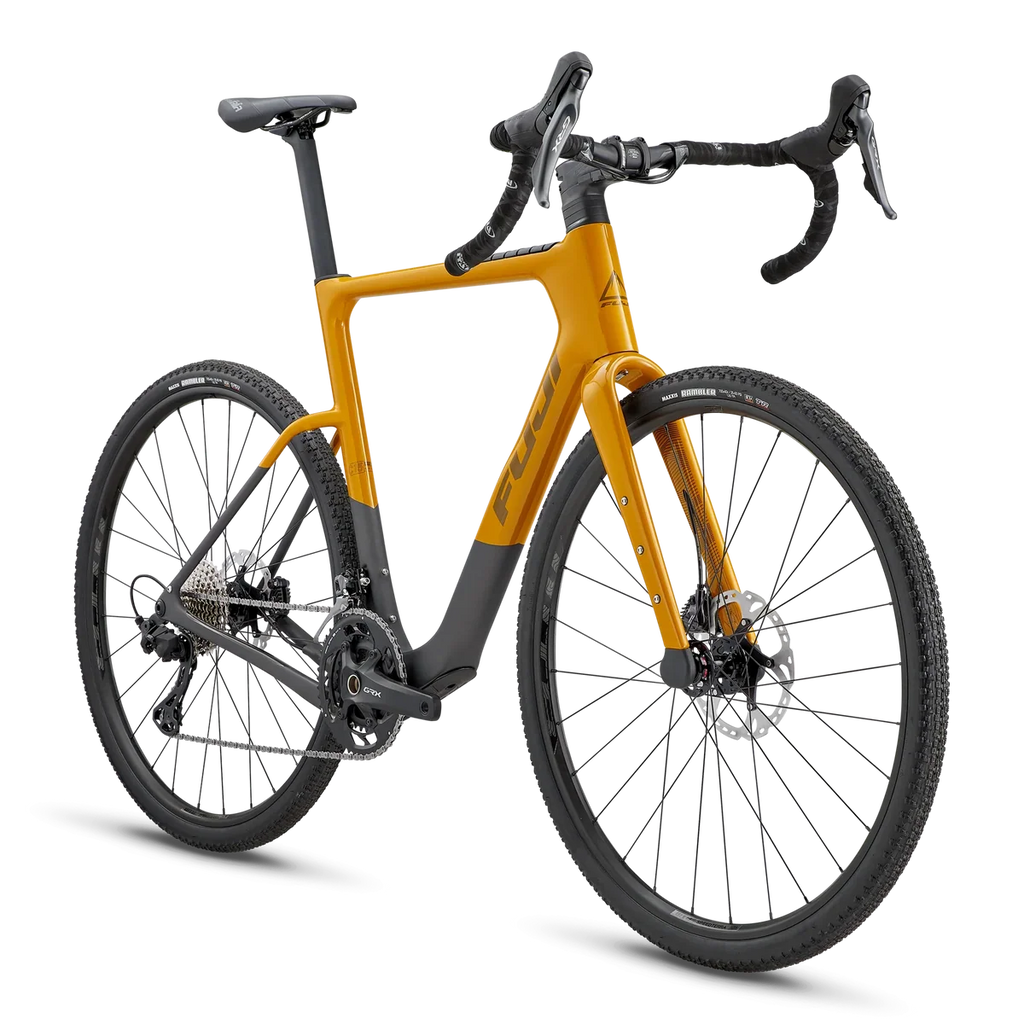

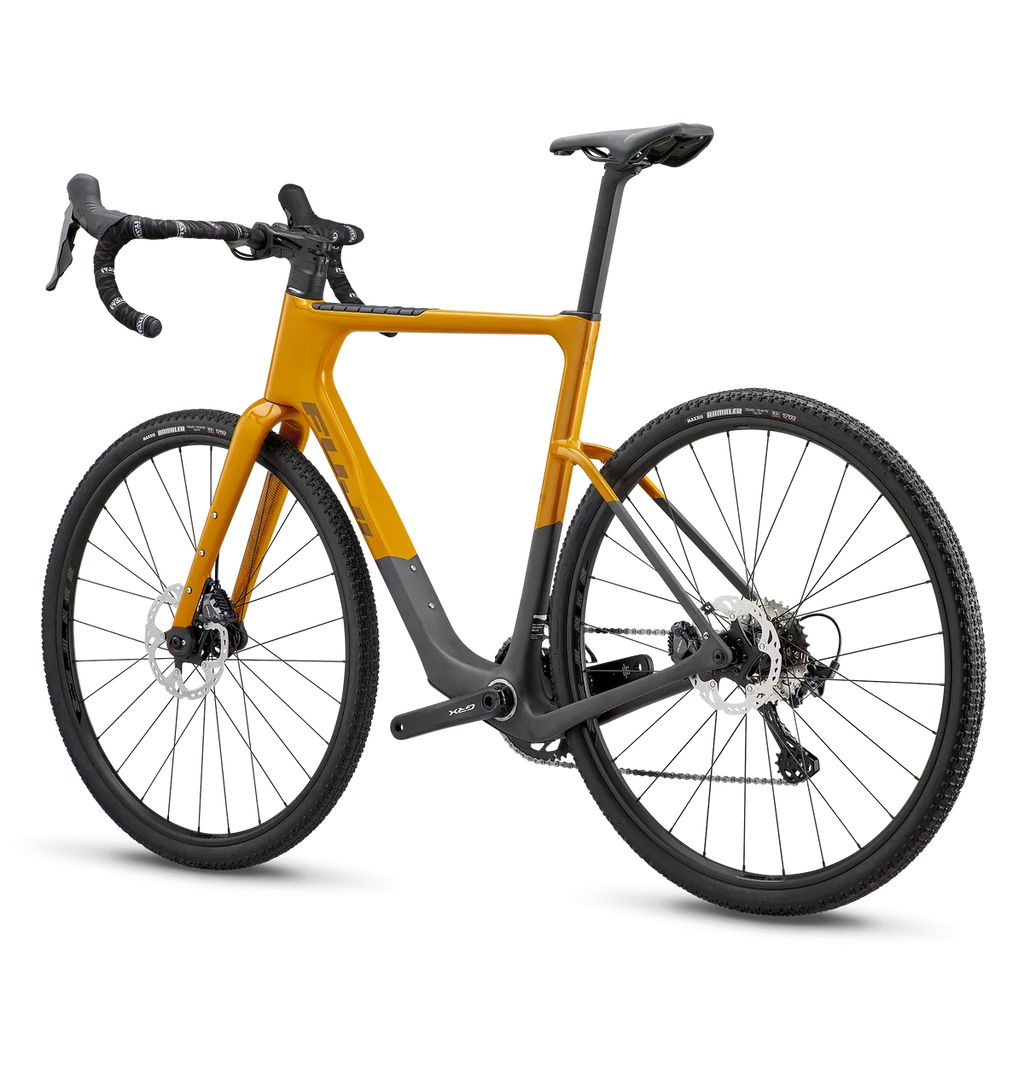

Fuji Jari Carbon 1.1 Honeywheat

Take everything you thought you knew about gravel riding and think again. The all-new, aero inspired Fuji Jari Carbon is redefining the all purpose, do-it-all ride. Cargo was a key design consideration behind the Jari Carbon so we created the SnackBar, a unique top tube solution to hold your nutrition. Additionally, below the bottom bracket is the Stowaway box. This is our proprietary undercarriage storage system that is perfect for carrying everday ride essentials. Lastly we designed the frame with an elongated bottom bracket area to better accomodate large frame bags by allowing the waterbottles to sit lower on the seattube and downtube inside the main triangle of the frame.

The result is a bike that thrives on mixed surface rides, smooth roads, chipped tarmac, chunky gravel, dirt roads or even singletrack. Load it up for bikepacking or throw some road tires on for a fast tempo group ride. Whatever you throw at it all roads are open for the Jari Carbon.

Sizes

XS (48cm), S (50cm), M (53cm), L (56cm), XL (59cm)

Color(s)

Honeywheat

Frame

C15 ultra high modulus carbon, tapered head tube, T47 85.5 BB, 142x12mm thru-axle, 27.2mm seatpost compatible

Fork

C10 carbon monocoque, tapered carbon steerer, 100x12mm thru-axle, adjustable offset.

Crankset

Shimano GRX RX820, 48/31T

Bottom Bracket

FSA T47 85.5, threaded, 24mm, internal bearing

Front Derailleur

Shimano GRX RX820

Rear Derailleur

Shimano GRX RX820

Shifters

Shimano GRX RX820, 2 x 12-speed

Cassette

Shimano HG710, 11-36T

Chain

Shimano CN-M6100

Wheelset

WTB Speedterra i25, 28H

Tires

Maxxis Rambler EXO TR, 700 x 40c

Brakeset

Shimano GRX RX820, hydraulic disc, 180/160mm rotors

Brake Levers

Shimano GRX RX820

Headset

FSA, ACR NO.55R 1.5” - 1.5"

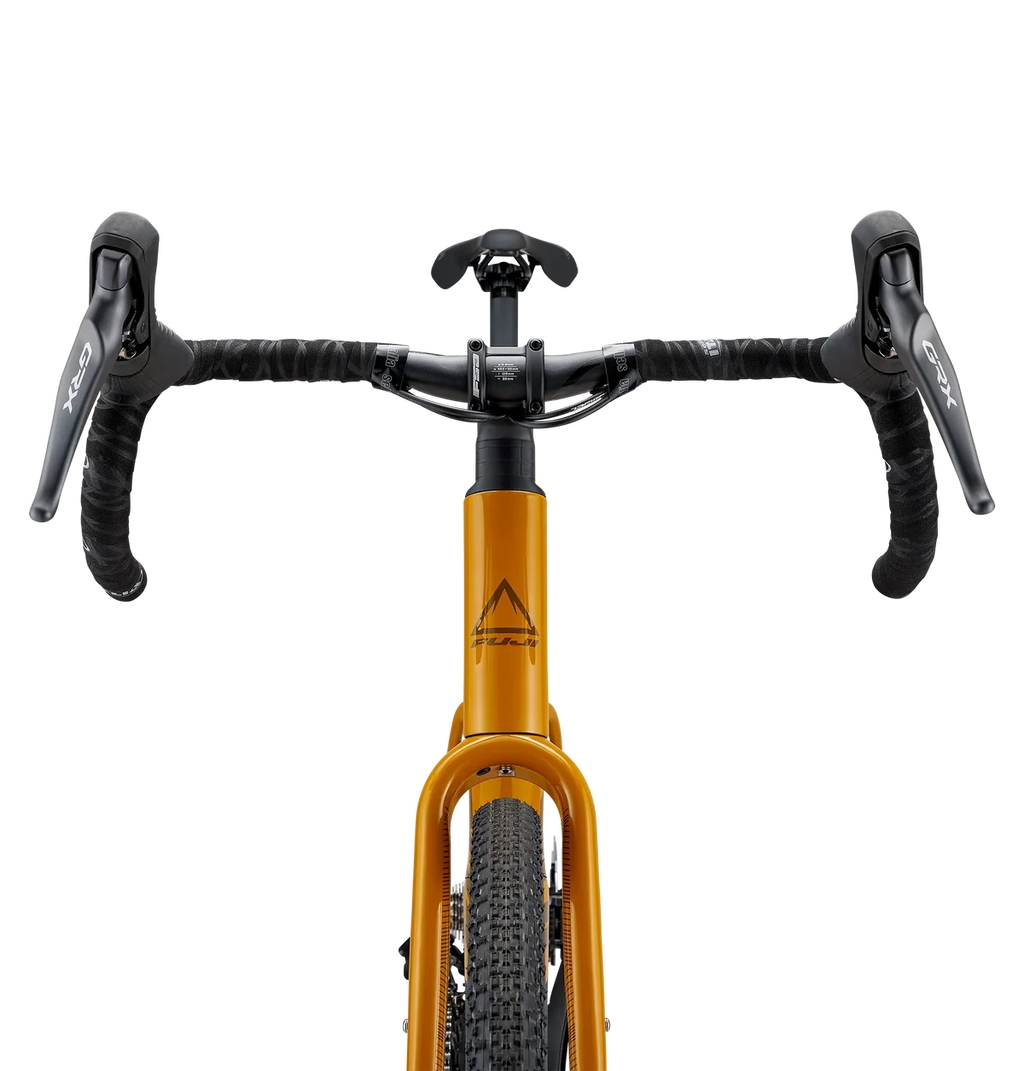

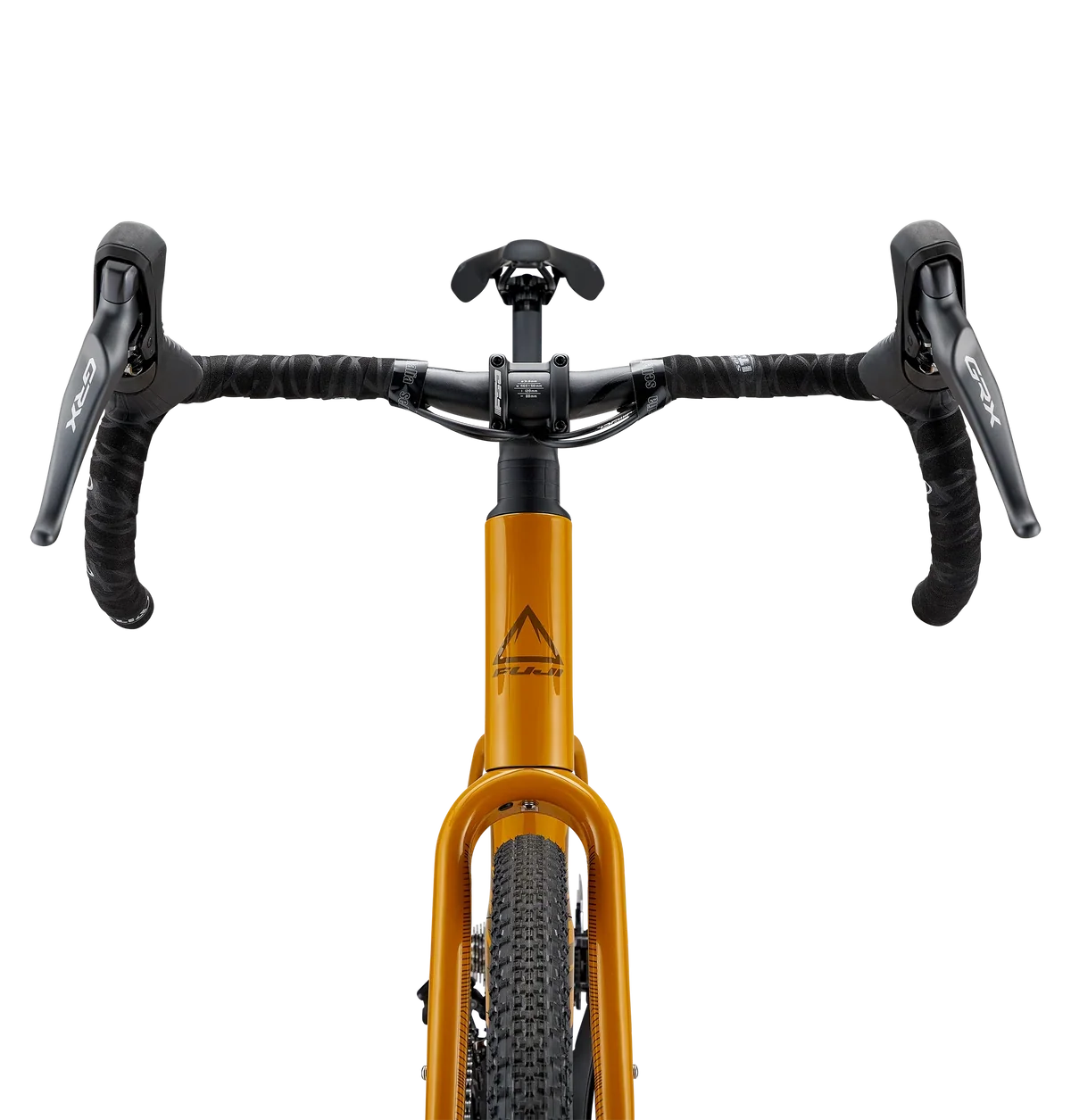

Handlebar

FSA A-Wing Pro, 31.8mm, 120mm drop, 88mm reach, 15° flare, 2.5mm rise

Stem

FSA NS SMR, -6°

Saddle

Selle Italia X3 BOOST

Seatpost

Fuji D-shape Carbon

Accessories

Top tube storage system, down tube tool box

Weight

9.72 kg / 21.38 lbs

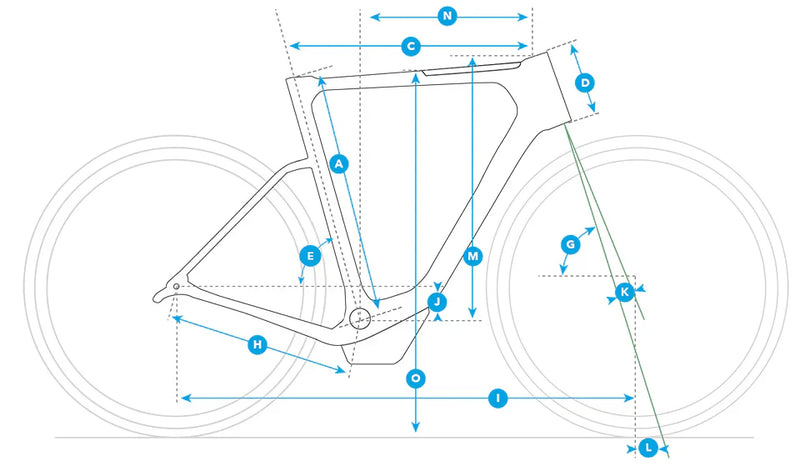

	Size	XS	S	M	L	XL
	Bike Size	48cm	50cm	53cm	56cm	59cm
A	Seat Tube, Center To Top	480	500	530	560	590
C	Top Tube, Effective	509	524	541	557	574
D	Head Tube Length	100	115	140	165	190
E	Seat Tube Angle	74°	74°	74°	74°	74°
G	Head Tube Angle	70°	71°	71°	71°	71°
H	Chainstay Length	425	425	425	425	425
I	Wheelbase	997	1004	1022	1040	1058
J	Bottom Bracket Drop	72	72	72	72	72
K	Fork Offset	45/55	45/55	45/55	45/55	45/55
M	Stack	525.5	543	567	591	614
N	Reach	365	375	385	395	405
O	Standover	771	790	817	844	871
	Stem	80	80	90	110	110
	Handlebar Width	420	440	440	460	460
	Crank	165	170	172.5	172.5	175
	Wheel Size	700	700	700	700	700
	Seat Post Diameter	D-shape / 27.2	D-shape / 27.2	D-shape / 27.2	D-shape / 27.2	D-shape / 27.2
